جزئیات محصول:
|
اوج روشنایی: | 1000 CD/m² (قابل خواندن نور خورشید) | اندازه نمایشگر: | 21.5 اینچی (546.86 میلی متر مورب) |
---|---|---|---|
قطعنامه: | 1080 × 1920 (Full HD) | تکنولوژی لمسی: | 10 نقطه CTP (سازگار با دستکش) |
رابط: | LVD های دو کانال (RGB 8 بیتی) | دمای عملیاتی: | -10 درجه سانتیگراد تا +60 درجه سانتیگراد (درجه صنعتی) |
دمای ذخیره: | -20 تا +60 درجه سانتیگراد | زاویه دید: | 89 درجه افقی/عمودی (CR> 10) |
نسبت کنتراست: | 1000: 1 (معمولی) | رابط لمسی: | یو اس بی |
درخواست ها: | تصویربرداری پزشکی ، کیوسک ، HMI | درمان سطح: | 20 ٪ ، 6 ساعت |
تضمین: | 2 سال (مجموعه گسترده ای برای استفاده صنعتی) | انطباق: | RoHS، REACH، بدون هالوژن، ISO 9001/14001 |
Ultra-Bright 21.5" Industrial TFT LCD for Extreme EU/US Environments
The SFHD2150A01PT-H20%2 delivers unmatched 1000 cd/m² brightness – engineered for sunlight visibility in North American and European industrial applications. Featuring Full HD resolution, wide-temperature operation (-10°C to +60°C), and 10-point capacitive touch, this display excels in medical diagnostics, outdoor payment terminals, and factory automation. Certified to RoHS, REACH, and ISO standards, it meets stringent EU/US regulatory requirements.
Key Advantages for Industrial Clients:
✅ 1000nits High Brightness – Readable under direct sunlight (ideal for outdoor kiosks)
✅ Glove-Compatible Touch – Works with capacitive stylus/wet hands (USB interface)
✅ Extended Warranty – 2-year coverage for 24/7 operation
Industrial-Grade Performance
Wide Temperature Resilience
Cold-starts at -10°C (freezing warehouses) and operates at +60°C (factory floors), passing 120-hour thermal cycling tests.
Dual-Channel LVDS Interface
Noise-resistant signal transmission for Siemens/Beckhoff PLCs in high-EMI environments.
Medical & Outdoor Ready
1000:1 contrast ratio + 89° viewing angles for DICOM-compatible grayscale imaging and outdoor signage.
Rugged Build
Anti-glare 6H hardened glass, IP65-equivalent fog resistance, and ±4kV ESD protection.
Technical Specifications
Feature |
Industrial Value |
---|---|
Power Efficiency |
Soft-start circuit (≤3A in-rush current) |
Touch Sensitivity |
10-finger detection (<10g pressure) |
Backlight Driver |
MY-1L2136A-v2.1 (10-30V input) |
Optical Bonding |
Liquid OCR for reduced reflection |
Medical
Surgical monitors, diagnostic imaging (DICOM grayscale)
Outdoor Infrastructure
Toll booths, bus stop info panels, self-service kiosks
Industry 4.0
CNC machine HMIs, robotic control interfaces (Germany)
Transportation
Airport baggage displays, train control systems (UK/France)
Why Choose This Display?
Manufactured by Saef Technology (ISO 9001/14001 certified), this module includes:
Specifications
ITEMS | Unit | Specification |
Screen Diagonal | mm | 546.86(21.5”) |
Active area | mm | 476.064(H) x 267.786(V) |
Pixels H x V | - | 1920(x3) x 1080 |
Pixels Pitch | um | 247.95(per one triad) x247.95 |
Pixel Arrangement | - | R.G.B. Vertical Stripe |
Display Mode | - | VA Mode, Normally Black |
Response Time | Msec | 14ms (typ., on/off) |
Weight | Grams | TBD |
Electrical Interface | - | Dual channel LVDS,8 bits RGB data input |
Support Color | - | 16.7M colors |
Surface Treatment | - | Anti-Glare,3H |
Temperature Range Operating Storage(Shipping) |
℃ |
-10 to +60 -20 to +60 |
External Dimensions
Interface Pin Definition
Pin No. | Symbol | Description |
1 | RxO0- | Negative LVDS differential data input (Odd data) |
2 | RxO0+ | Positive LVDS differential data input (Odd data) |
3 | RxO1- | Negative LVDS differential data input (Odd data) |
4 | RxO1+ | Positive LVDS differential data input (Odd data) |
5 | RxO2- | Negative LVDS differential data input (Odd data) |
6 | RxO2+ | Positive LVDS differential data input (Odd data) |
7 | GND | Ground |
8 | RxOCLK- | Negative LVDS differential clock input (Odd clock) |
9 | RxOCLK+ | Positive LVDS differential clock input (Odd clock) |
10 | RxO3- | Negative LVDS differential data input (Odd data) |
11 | RxO3+ | Positive LVDS differential data input (Odd data) |
12 | RxE0- | Negative LVDS differential data input (Even data) |
13 | RxE0+ | Positive LVDS differential data input (Even data) |
14 | GND | Ground |
15 | RxE1- | Negative LVDS differential data input (Even data) |
16 | RxE1+ | Positive LVDS differential data input (Even data) |
17 | GND | Ground |
18 | RxE2- | Negative LVDS differential data input (Even data) |
19 | RxE2+ | Positive LVDS differential data input (Even data) |
20 | RxECLK- | Negative LVDS differential clock input (Even clock) |
21 | RxECLK+ | Negative LVDS differential clock input (Even clock) |
22 | RxE3- | Negative LVDS differential data input (Even data) |
23 | RxE3+ | Positive LVDS differential data input (Even data) |
24 | GND | Ground |
25 | CTL | CTL_DVR |
26 | CE | CE_DVR |
27 | NC | No connection |
28 | VDD | Power Supply Input Voltage |
29 | VDD | Power Supply Input Voltage |
30 | VDD | Power Supply Input Voltage |
Backlight Specification
Parameter | Symbol | Value | Unit | ||
MiN. | Typ. | Max. | |||
Light Bar input Voltage | VLED | 48 | 52 | 56 | V |
Light Bar input Current | ILED | - | 480 | - | mA |
Power Consumption | PLED | 23.04 | 24.96 | 26.88 | W |
LED Life Time | LBL | 40000 | 50000 | - | Hrs |
Electrical Characteristics
Parameter | Symbol | Min | Typ Max | Unit | |
Power supply voltage | VDD | 4.5 | 5.0 | 5.5 | V |
Power Supply Current | IVDD | 500 | 1200 | mA | |
In-Rush Current | IRUSH | 2.0 | 3.0 | A | |
Permissible Input Ripple Voltage | VRF | 300 | mV | ||
High Level Differential Input Threshold Voltage | VIH | +100 | mV | ||
Low Level Differential Input Threshold Voltage | VIL | -100 | mV | ||
Differential input voltage | VID | 200 | 600 | mV | |
Input voltage(BL) | VBL_I | -0.3 | VDD+0.3 | mV | |
Differential input common mode voltage | VCM | 1.0 | 1.2 | 1.5 | |
Power Consumption | VD | 2.5 | 6 | W |
Parameter | Conditions | Min. | Typ. | Max. | Unit |
Contrast Ratio | Center | 700 | 1000 | - | - |
Response Time | Tr+Td | - | 14 | 20 | ms |
CF Color Chromaticity (CIE1931) |
Red x |
Typ. -0.03 |
0 |
Typ. +0.03 |
0 |
White x | 0.323 | - | |||
White y | 0.379 | - | |||
Center Luminance of white | YLI | 800 | 1000 | cd/m2 | |
Cross Talk | Ct | 2.0 | % |

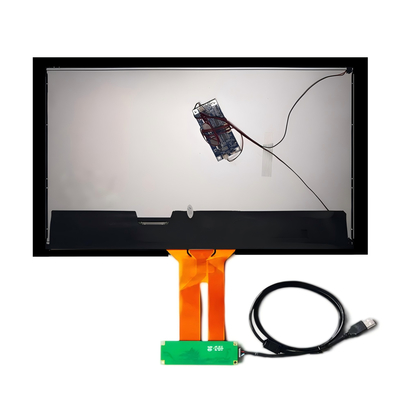

Product Image
