جزئیات محصول:
|
اندازه صفحه نمایش: | مورب 15.6 اینچی | نوع نمایش: | ماژول LCD صنعتی TFT |
---|---|---|---|
قطعنامه: | 1080 × 1920 پیکسل (نوار RGB) | دمای ذخیره: | 30- تا 80+ درجه سانتی گراد |
دمای عملیاتی: | -35 درجه سانتی گراد تا +85 درجه سانتی گراد | روشنایی: | 500 سی دی در متر مربع |
نسبت کنتراست: | 1200:1 (تایپ.) | رابط: | ورودی LVD 8 بیتی ، اتصال I-PEX |
درمان سطح: | پوشش های AG/AR/AF (قابل انتخاب) | تکنولوژی لمسی: | پنل لمسی خازنی |
پوشش شیشه ای: | شیشه گوریل/شیشه ای معتدل/PMMA | نقاط تماس: | 10 نقطه چند لمسی |
رابط لمسی: | I2C/USB/RS232 (قابل تنظیم) | گزینه های IC: | eeti ، ilitek ، cypress ، goodix |
سفارشی سازی: | چاپ ابریشم ، آرم ، برش | انطباق: | سازگار با REACH و RoHS |
Introducing the SFTO1560JD-7328BN – A Professional-Grade 15.6" FHD Industrial TFT Display for Demanding Environments
The SFTO1560JD-7328BN is a high-performance industrial TFT LCD module designed for robust applications in industrial, medical, aerospace, and marine environments. With a 15.6-inch diagonal active area and Full HD resolution (1920 x 1080), this display delivers exceptional clarity and reliability in extreme conditions.
Key Features:
Technical Specifications:
Applications:
Why Choose SFTO1560JD-7328BN?
Perfect for OEMs and System Integrators in Europe & USA:
The SFTO1560JD-7328BN is engineered to meet the demands of industrial automation, healthcare, and aerospace sectors. Its compact design, high brightness, and wide temperature tolerance make it a top choice for professionals requiring uncompromising reliability.
Contact Us Today for Bulk Orders or Customization!
At Saef Technology Limited, we provide end-to-end support for your industrial display needs. Based in China with global distribution, we ensure fast delivery and technical assistance for customers in North America and Europe.
Specifications
Parameter | Specification | Unit |
Active Area | 345.6(W) x 194.4(H) | mm |
Number Of Pixels | 1920 x RGB x 1080 | pixels |
Pixel Pitch | 0.18(W) x 0.18(H) | mm |
Pixel Arrangement | RGB Vertical stripe | |
Display Mode | Normally black | |
Display Colors | 8bits | colors |
Surface Treatment | HC | |
Contrast Ratio | Typ. 1200 Min.1000 | |
Viewing Angle(CR>10) | Typ.85/85/85/85 | deg. |
Color Gamut | 72% NTSC | |
Brightness | 500typ 425min | cd/m2 |
Brightness Uniformity | 80% typ 75% min | |
Power Consumption | Max.10.65W Typ. 9.55 W | watt |
Outline Dimension | 363.8*215.9 | mm |
Weight | Typ. 850g | gram |
External Dimensions
Interface Pin Definition
No. |
Symbol |
No. |
Symbol |
||
1 |
RE3P |
Positive LVDS differential data input Channel E3(Even) |
21 |
RO1N |
Negative LVDS differential data i nput Channel O1(Odd) |
2 |
RE3N |
Negative LVDS differential data inpu t Channel E3(Even) |
22 |
RO0P |
Positive LVDS differential data in put Channel O0(Odd) |
3 |
RECLKP |
Positive LVDS differential clock inpu t (Even) |
23 |
RO0N |
Negative LVDS differential data i nput Channel O0(Odd) |
4 |
RECLKN |
Negative LVDS differential clock inp ut(Even) |
24 |
GND |
LCD Ground |
5 |
RE2P |
Positive LVDS differential data input Channel E2(Even) |
25 |
NC |
SDA for SAEF use, this pin shoul d be open |
6 |
RE2N |
Negative LVDS differential data inpu t Channel E2(Even) |
26 |
NC |
SCL for SAEF use, this pin shoul d be open |
7 |
GND |
LCD Ground |
27 |
NC |
MTP for SAEF use, this pin shoul d be open |
8 |
RE1P |
Positive LVDS differential data input Channel E1(Even) |
28 |
LCD_VCC |
LCD Power 3.3V |
9 |
RE1N |
Negative LVDS differential data inpu t Channel E1(Even) |
29 |
LCD_VCC |
LCD Power 3.3V |
10 |
RE0P |
Positive LVDS differential data input Channel E0(Even) |
30 |
LCD_VCC |
LCD Power 3.3V |
11 |
RE0N |
Negative LVDS differential data inpu t Channel E0(Even) |
31 |
LED_PW M |
Backlight Adjust ,3.3V(3V~3.6V) |
12 |
RO3P |
Positive LVDS differential data input Channel O3(Odd) |
32 |
LED_EN |
Enable pin ,3.3V(3V~3.6V) |
13 |
RO3N |
Negative LVDS differential data inpu t Channel O3(Odd) |
33 |
GND |
Ground |
14 |
GND |
LCD Ground |
34 |
STBYB |
Deep standby mode setting pin. |
15 |
ROCLKP |
Positive LVDS differential clock inpu t (Odd) |
35 |
RSTB |
Device Reset for LCD driver IC, Low active |
16 |
ROCLKN |
Negative LVDS differential clock inp ut(Odd) |
36 |
GND |
Ground |
17 |
GND |
LCD Ground |
37 |
BL_POW ER |
+12V Vi power supply |
18 |
RO2P |
Positive LVDS differential data input Channel O2(Odd) |
38 |
BL_POW ER |
+12V Vi power supply |
19 |
RO2N |
Negative LVDS differential data inpu t Channel O2(Odd) |
39 |
BL_POW ER |
+12V Vi power supply |
20 |
RO1P |
Positive LVDS differential data input Channel O1(Odd) |
40 |
BL_POW ER |
+12V Vi power supply |
Optical Characteristics
Item |
Symbol |
Condition |
Min |
Typ. |
Max |
Unit |
luminance |
Bp |
θ=0° |
425 |
500 |
-- |
cd/m2 |
L255 Uniformity |
△Bp |
|
75 |
80 |
-- |
% |
Viewing Angle |
θL |
Cr≥10 |
-- |
85 |
-- |
deg |
|
θR |
|
-- |
85 |
-- |
|
|
ψT |
|
-- |
85 |
-- |
|
|
ψB |
|
-- |
85 |
-- |
|
Contrast Ratio |
Cr |
θ=0° FF=0° |
1000 |
1200 |
|
- |
Color Coordinate of CIE1931 |
Wx |
θ=0° |
0.283 |
0.313 |
0.343 |
- |
|
Wy |
|
0.299 |
0.329 |
0.359 |
|
Color Gamut |
|
NTSC |
-- |
72 |
-- |
% |
Gamma |
|
25℃ |
2.0 |
2.2 |
2.4 |
% |
Crosstalk |
|
25℃ |
-- |
-- |
2 |
% |
Backlight Characteristics
Parameter |
Symbol |
Values |
Unit |
||
|
|
Min. |
Typ. |
Max. |
|
LED Supply Voltage |
V LED |
28 |
30 |
31 |
V |
LED Supply Current |
ILED |
- |
252 |
- |
mA |
Power Consumption |
PLED |
- |
8.89 |
9.19 |
W |
LED Quantity |
QLED |
- |
40 |
- |
EA |
LED Life Time |
TLED |
40000 |
50000 |
- |
Hrs |

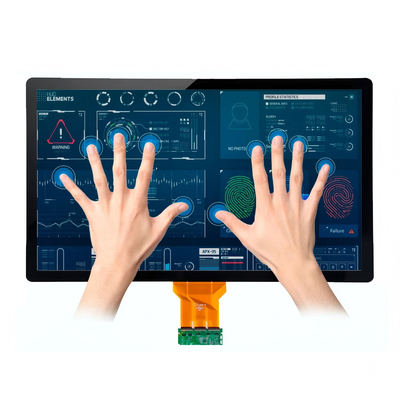

CTP Specification (optional)
Category | Parameter | Specification |
General | Structure | Cover Glass + DITO Glass |
Cover Lens Strengthening | Chemically Strengthened | |
Cover Lens Surface Hardness | ≥6H (Pencil Hardness) | |
Light Transmission Rate | ≥85% | |
Operation Temperature | -30℃ ~ +80℃, ≤85% RH | |
Storage Temperature | -35℃ ~ +85℃, ≤85% RH | |
Electrical | Interface | IIC / USB / UART |
Touch IC | IL12511 | |
Power Supply Voltage (VDD) | 3.3V or 5V (Selectable) | |
Host Resistance (SDA/SCL) | Configurable on Main-board | |
Environmental | Operating Conditions | Functional in fog/surface water |
Surface Properties | Surface Ink | Anti-UV |
Surface Treatment | Anti-Glare (Haze: 10%) | |
LCD-TP Lamination | OCA (Optically Clear Adhesive) | |
Compliance | Material Standards | RoHS & Halogen-Free Compliant |

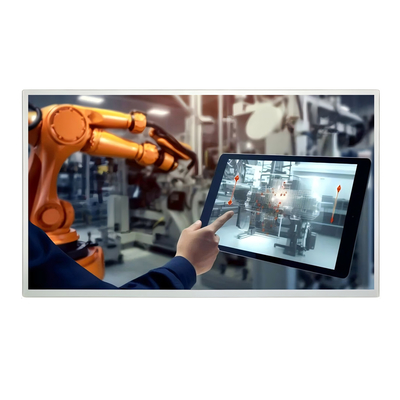

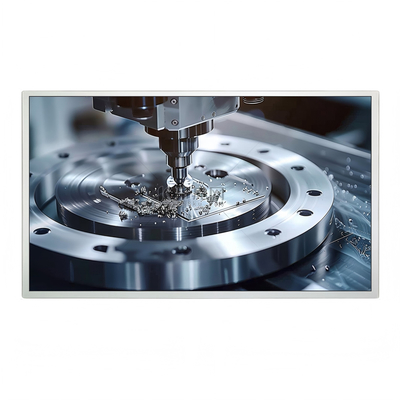

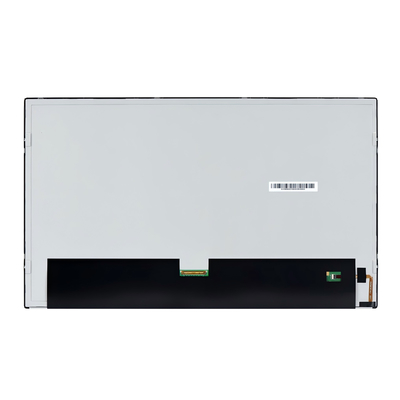

Product Image
